Introduction
Intraductal papillary mucinous neoplasms of the pancreas (IPMNs) were first recognized as an entity in the 1980s [1,2] and are increasingly detected due to widespread use of imaging technology. IPMNs are classified into those with low-grade dysplasia, with high-grade dysplasia, and with invasive carcinoma [3]. High-grade IPMNs are histopathologically considered as an early cancer stage. The 5-year survival rates for non-invasive and invasive IPMNs are 88-100% [4,5] and 34-42% [6,7], respectively. Thus, high-grade dysplastic IPMNs may be a potentially curable pancreatic cancer if treated before becoming invasive. The favourable prognostic factors for IPMN-associated carcinoma (compared with common-type pancreatic ductal carcinoma) are lower rates of advanced T stage disease, lymph node metastasis, high tumour grade, positive resection margin, and perineural and vascular invasion [8]. These factors, associated with imaging findings, can be assessed using preoperative magnetic resonance imaging (MRI); therefore, MRI findings could be significant for the evaluation of the malignant potential of IPMN, particularly prior to progression to invasive carcinoma. Differentiating potentially malignant from benign neoplasms before this stage can help guide clinical strategy, in particular if a non-invasive screening technique can be used.
MRI with magnetic resonance cholangiopancreatography (MRCP) is a useful imaging modality for evaluating the malignant potential and surgical resectability of IPMNs [9]. More specifically, diffusion-weighted imaging (DWI) is considered effective for the diagnosis of malignant IPMNs [10-12], but with limited evidence. Malignant pancreatic tumours generally show higher signal intensities on DWI and lower apparent diffusion coefficient (ADC) values than do benign tumours [13,14]. DWI performance in evaluating the malignant potential of cystic pancreatic lesions is comparable to that of contrast-enhanced magnetic resonance imaging (MRI) [12,15]. Furthermore, the combined use of DWI and MRCP, and the use of the minimum (ADCmin) and mean ADC (ADCmean) values, are effective for diagnosing malignant IPMNs and predicting the risk for IPMNs with invasive carcinoma [10,12,13]. The lesion-to-spinal cord signal intensity ratio (LSR) was recently proposed as a useful measure for predicting malignancy. LSR is a convenient semiquantitative variable that can be calculated on DWI [16-19]. LSR is comparable to the ADC measurement method and can be used with any MRI scanner [17,18]. In general, the conventional method, using 2-dimensional region-of-interest (ROI)-based analysis (hereafter referred to as 2D analysis), may be highly representative, is less amenable to manual ROI variability, and is less time-consuming. Conversely, whole-lesion ADC-histogram analysis using 3-dimensional volume-of-interest (VOI) (hereafter referred to as 3D analysis) of the entire IPMN is also useful for assessing the malignant potential of pancreatic IPMNs [20]. Pixel-by-pixel analysis of a slice in a tumour can reveal tumour heterogeneity [20].
However, the best method for predicting malignant potential in early-stage IPMNs remains unclear. Moreover, differentiating IPMNs with high-grade dysplasia from those with low-grade dysplasia using non-invasive techniques may help optimize clinical strategies. Thus, this study investigated the predictors of IPMNs with high-grade dysplasia using 2D and 3D analyses based on DWI.
Material and methods
Patients
This retrospective study was approved by the relevant review committee, and the procedures followed were in accordance with the Helsinki Declaration of 1975, as revised in 2000. The requirement for written informed consent was waived by the relevant institutional review board because of the retrospective study design. The study included patients who were diagnosed with IPMN of the pancreas, with a maximum mass diameter ≥ 1 cm, based on post-surgical histopathological reports, between 1 June 2009 and 30 September 2019. All data were retrospectively identified from our institutional imaging database. We excluded patients who did not undergo MRI within 6 months pre-surgery, in whom IPMN with a maximum diameter < 1 cm was an incidental finding (not indicated for surgery), and who were histopathologically diagnosed with IPMNs with invasive carcinoma. No patient underwent fine needle aspiration (FNA) or chemotherapy before MRI and surgery.
Magnetic resonance imaging technique
All patients underwent MRI on a 1.5-Tesla MR unit (Magnetom Avanto or Symphony, Siemens Medical Solutions, Erlangen, Germany [n = 39]) with a 6-channel body matrix coil, or a 3.0-Tesla MR unit (Skyra, Siemens Medical Solutions, Erlangen, Germany [n = 6]) with an 18-channel body coil.
T1-weighted breath-hold spoiled gradient-recalled-echo (GRE) in-phase and opposed-phase images, 3D-fat-suppressed T1-weighted GRE sequences with Cartesian sampling (volumetric interpolated breath-hold examination on Siemens Healthcare MRI systems), T2-weighted fast-spin-echo images, DW images with low and high b-values (b = 50 and 800 s/mm2, respectively), and half-Fourier acquisition single-shot turbo spin-echo sequences were obtained. ADC maps were automatically generated using the operating console. Respiratory-triggered 3D-T2-weighted MRCP with maximum intensity projection was performed. Details of imaging parameters in this study are summarized in Supplementary Table 1.
Histopathological analysis
Determination of the IPMN grade (low-grade dysplasia, high-grade dysplasia, and invasive carcinoma) was based on the highest-grade focus. The presence or absence of invasive carcinoma was determined based on histopathological examinations in all cases. Lesions with minimal invasion, i.e. a few lesions with only a few tumour glands communicating with the intraductal carcinoma components, were also considered invasive carcinoma.
Image analysis
A radiologist (17 years of MRI experience) retrospectively reviewed all MR images. The reader was not blinded to preoperative reports of computed tomography, MRI, endoscopic ultrasonography, or clinical and histopathological examinations. With reference to the revised International Consensus Guidelines for the Management of IPMN of the Pancreas, 2017 [21], preoperative MRI features were evaluated on a picture archiving and communication system (PACS) monitor.
Binary MRI variables were evaluated as present or absent, as follows: enhancing mural nodule > 5 mm, main pancreatic duct (MPD) size ≥ 10 mm, cyst size ≥ 3 cm, enhancing mural nodule < 5 mm, thickened enhancing cyst wall ≥ 3 mm, MPD size 5-9 mm, abrupt MPD calibre change, and lymphadenopathy. An electronic calliper, included in the PACS program, was used to obtain measurements from any axial or coronal image. If several cystic lesions were present, the lesion with the largest wall and septal thickness and mural nodule was used for analysis. A mural nodule was defined as any solid nodule in the MPD or branch duct of a well-circumscribed tissue lesion surrounded by a duct wall. Lymphadenopathy was considered “present” when the short axis diameter exceeded 10 mm.
Blinded evaluation during 2D and 3D analyses
All data except information regarding the target lesion were anonymized. One blinded radiologist (Reader 1: 4 years’ experience) analysed body MR images to determine LSR, ADCmin, and ADCmean of all lesions for 2D analysis. Figure 1 illustrates the 2D analysis methods used. LSR was measured on a DW image with a diffusion gradient of b = 800 s/mm2 and calculated as follows: mean signal intensity of the lesion on DWI/maximum signal intensity of the spinal cord on DWI. ADC values were measured after establishing LSR. ROI in the spinal cord on DWI was located on a slice of the lumbar enlargement because the tissue volume was larger in this area than in other spinal regions, thus facilitating ROI localization. ROIs of the same size were set at the same location as that of the pancreatic lesion on each DW image and ADC map. ROIs in the pancreatic lesion on both the DW image and ADC map were round or oval and covered the solid component or septum/cyst wall as much as possible, excluding a partial-volume phenomenon. The highest mean signal intensity of the lesion on DWI, the lowest ADCmin, and the lowest ADCmean among the 3 measurements were adopted for analyses.
Figure 1

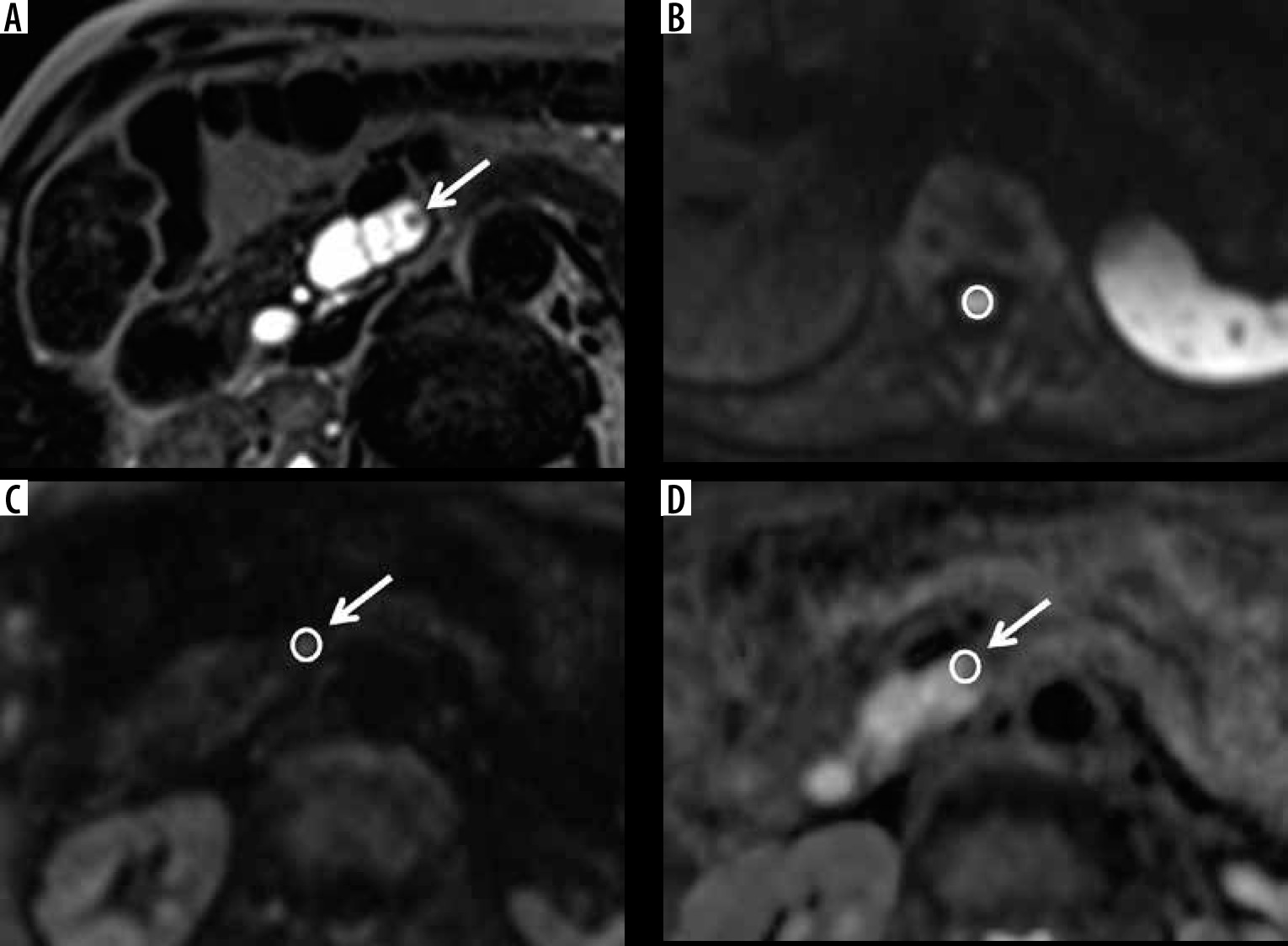

Example of 2D analysis method. Sample of 1.5-Tesla magnetic resonance images of a 76-year-old man with branch-type intraductal papillary mucinous neoplasm of the pancreas (IPMN) with high-grade dysplasia in the head of the pancreas. A) Half-Fourier acquisition single-shot turbo spin-echo (HASTE) image. B-C) Diffusion-weighted (DW) image. D) Apparent diffusion coefficient (ADC) map. Mural nodule was identified in the branch-type IPMN on HASTE images (A). First, ROI in the spinal cord on DWI was located on a slice of the lumbar enlargement (B). Then, ROIs of the same size were set at the same location as that of the pancreatic lesion on each DW image and ADC map (C, D). Finally, the maximum signal intensity of the spinal cord on DWI, the highest mean signal intensity of the lesion on DWI, the lowest ADCmin, and the lowest ADCmean among the 3 measurements were adopted for analyses. Area of ROI, LSR, ADCmin, and ADCmean were 52 (mm2), 0.29, 1.354 (×10-3 mm2/s), and 2.201(×10-3 mm2/s), respectively
The same lesions evaluated by 2D analysis were subjected to 3D analysis by the same radiologist. For each patient, a 3D-VOI was placed on the area recognized as a mass with solid components on the ADC map using specialized application software (FireVoxel; https://wp.nyu.edu/firevoxel). ADC values were constructed into a histogram, which was used to obtain parameters of the first-order statistical properties of the image. The overall mean (ADCoverall mean), mean of the bottom 10th percentile (ADCmean0-10), mean of the bottom 10-25th percentile (ADCmean10-25), mean of the bottom 25-50th percentile (ADCmean25-50), skewness (ADCskewness), kurtosis (ADCkurtosis), and entropy (ADCentropy) [22] were determined. Figure 2 illustrates the 3D analysis methods used. To investigate the reproducibility of the results of Reader 1, another blinded radiologist (Reader 2: 12 years’ experience) performed 2D and 3D analyses using the same method. Reader 2 was blinded to the results of Reader 1 and the clinical and histopathological information.
Figure 2
Example of 3D analysis method. Sample of 1.5-Tesla magnetic resonance images of a 79-year-old man with branch-type intraductal papillary mucinous neoplasm of the pancreas (IPMN) with high-grade dysplasia in the head of the pancreas. A 3D-VOI was placed on the area diagnosed as a mass with solid components on the apparent diffusion coefficient (ADC) map (areas marked in pink). All slices in which visible areas with measurable ADC values within the lesion occurred, were included. The ADC values were then constructed into a histogram as follows: Median ADC value = 3.08 (× 10-3 mm2/s), voxel count = 390, volume = 8.55 cm3.
Statistical analysis
The Mann-Whitney U and Fisher’s exact tests were used to compare continuous and binary variables, respectively. All continuous variables measured by Reader 1 were used for statistical assessment of 2D and 3D analyses. All continuous variables measured by Reader 2 were used for inter-rater reliability assessment. The diagnostic performances of continuous variables were estimated using receiver operating characteristic (ROC) curves and evaluated by comparing the area under the ROC curve (AUC), considering histopathological examination as the reference standard. Inter-rater reliability was assessed using intraclass correlation coefficients (ICCs). ICCs of 0.81-1.0, 0.61-0.80, 0.41-0.60, 0.21-0.40, and ≤ 0.20 represented almost perfect, substantial, moderate, fair, and slight agreement, respectively. Multivariate logistic regression analysis was performed with continuous variables of 2D and 3D analyses to determine the independent predictors of IPMNs with high-grade dysplasia. Continuous variables that showed significant association with IPMNs with high-grade dysplasia in univariate analysis and had almost perfect or substantial agreement in the inter-rater reliability assessment were included in the multivariate logistic regression analysis. Diagnostic accuracy was calculated based on cut-off values chosen to maximize the Youden index on the ROC analysis and assessed for the continuous variables in the multivariate analysis. A p-value of < 0.05 was considered statistically significant. All statistical analyses were performed using R software (The R Project for Statistical Computing, www.r-project.org, version 3.3.0) and SPSS (ver. 25; IBM Corp., Armonk, NY).
Results
The participant selection process is depicted in Figure 3. This study included 45 patients with histopathologically confirmed IPMNs with high- (n = 16) or low-grade dysplasia (n = 29) (Figures 4 and 5). Compared with patients with IPMNs with low-grade dysplasia, those with high-grade dysplasia were older and had larger tumours as determined by the largest tumour diameter (p < 0.05; Table 1). Among MRI features, only an abrupt calibre change in MPD was significantly associated with IPMNs with high-grade dysplasia in univariate analysis (p < 0.05; Table 2). The results of 2D and 3D analyses are shown in Table 3. Box and whisker plots of 2D and 3D analyses are shown in Figure 6. The ROIs of the 2D analysis (p = 0.97) and the VOIs of the 3D analysis (p = 0.46) were not significantly different. The LSR (mean value ± standard deviation) was 0.3 ± 0.1 for IPMNs with high-grade dysplasia and 0.23 ± 0.09 for IPMNs with low-grade dysplasia (AUC: 72%; p < 0.05). ADCoverall mean, ADCmean0-10, ADCmean10-25, ADCmean25-50, and ADCentropy showed significant between-group differences (AUC = 72-93%; p < 0.05). Inter-rater reliability analysis showed almost perfect agreement for LSR and VOIs, and substantial agreement for ADCoverall mean and ADCentropy (Table 4). Multivariate logistic regression analysis showed that ADCoverall mean and ADCentropy were significant independent predictors of IPMNs with high-grade dysplasia (Table 5). The diagnostic accuracies of ADCoverall mean and ADCentropy were 80% and 73%, respectively (Table 5).
Figure 3
Flow diagram of the patient selection process. IPMN – intraductal papillary mucinous neoplasm of the pancreas, MR – magnetic resonance, CT – computed tomography, EUS – endoscopic ultrasonography
Figure 4

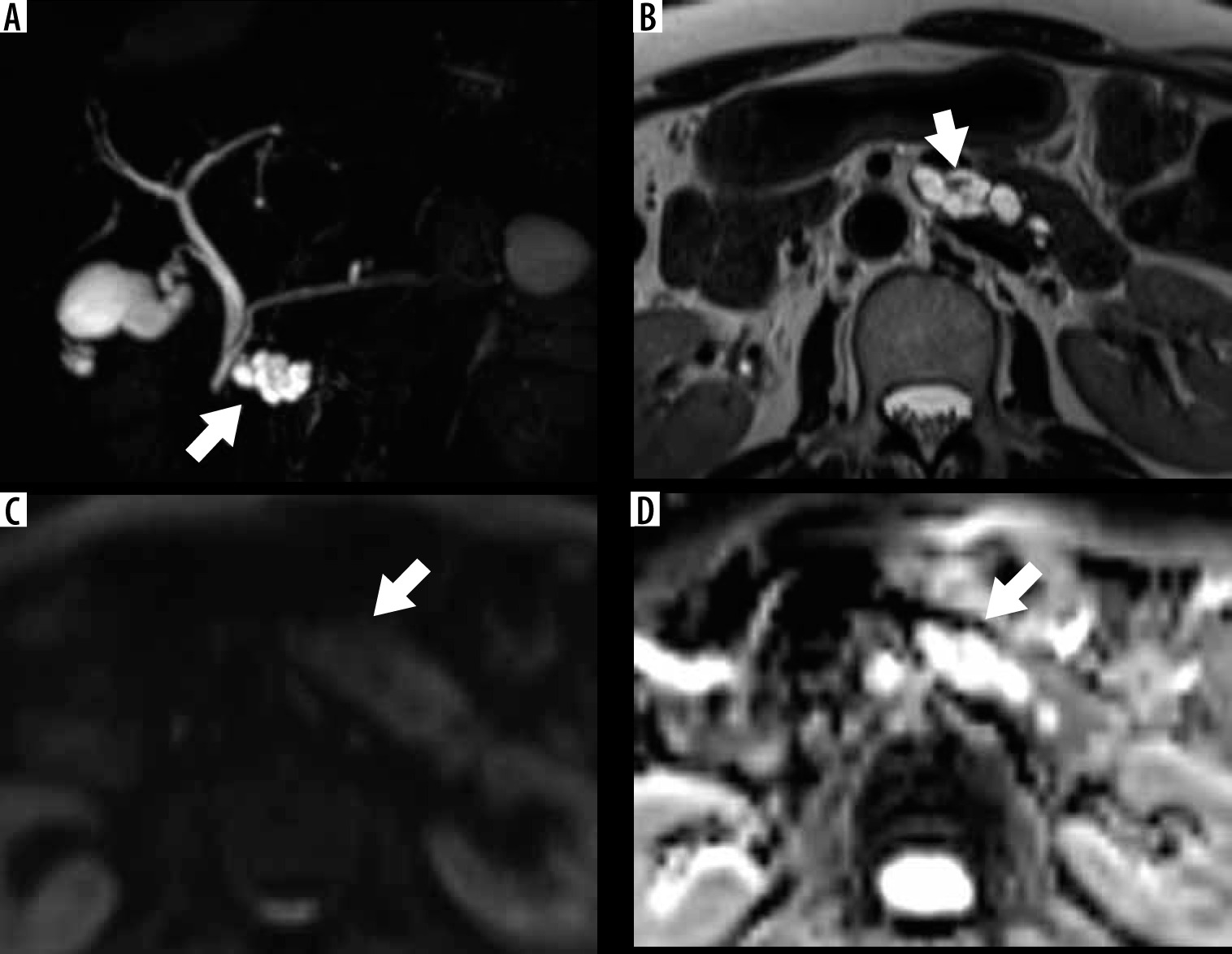

. Sample of 3.0-Tesla magnetic resonance images in a 63-year-old woman with branch-type intraductal papillary mucinous neoplasm of the pancreas (IPMN) with low-grade dysplasia in the body of the pancreas. A – Maximum intensity projection image showing cystic lesion with lobulated shape and multi-septal structures (arrow). B – T2-weighted turbo spin echo image showing cystic lesion with a mural nodule (≥ 5 mm; arrowhead). C – Diffusion-weighted image showing no obvious high signal intensity (arrow). D – No definite restricted region was detected on the apparent diffusion coefficient (ADC) map (arrow). ADCoverall mean and ADCentropy were 3.16 and 3.05 (× 10-3 mm2/s), respectively
Figure 5

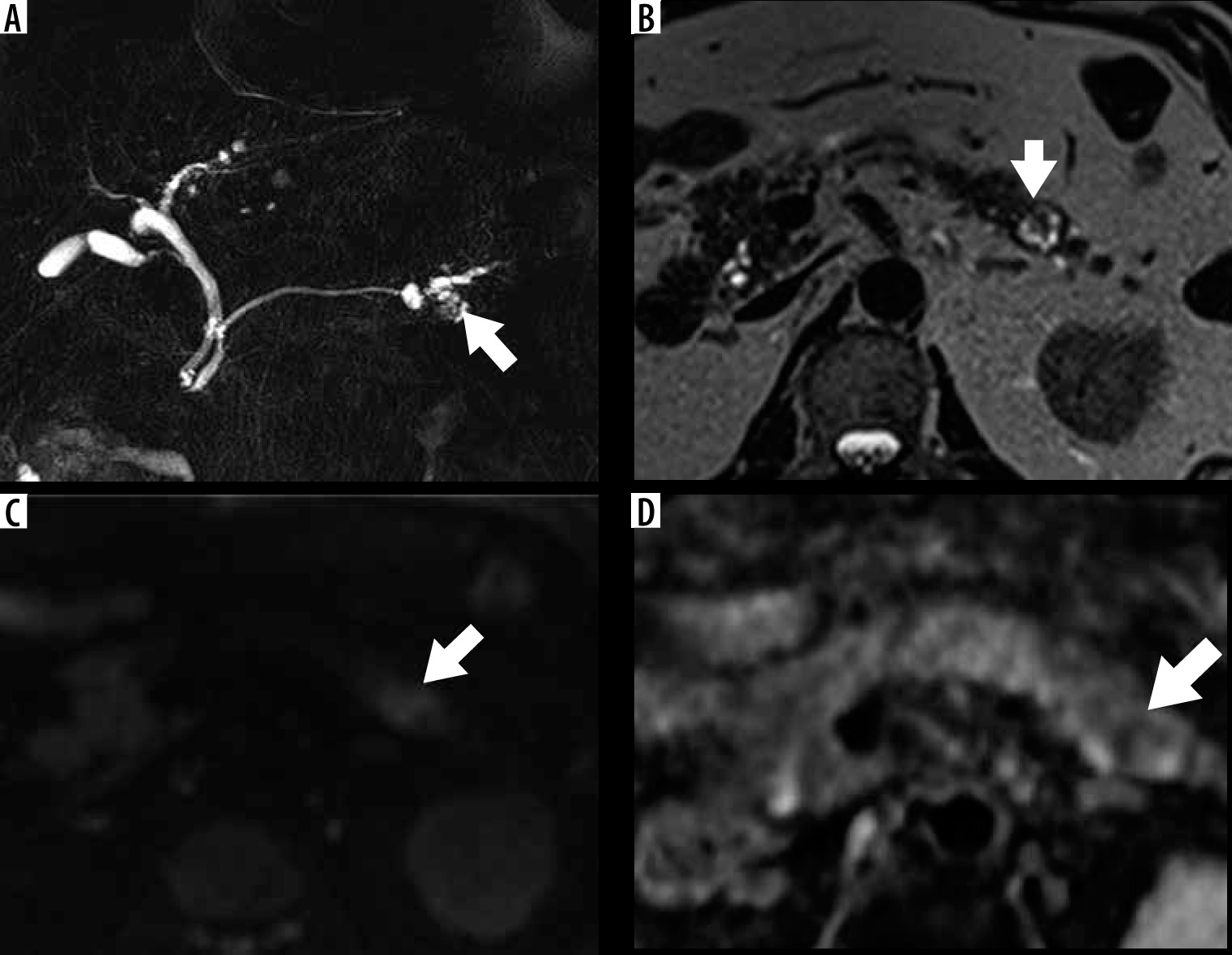

Sample of 1.5-Tesla magnetic resonance images in a 76-year-old man with non-invasive intraductal papillary mucinous neoplasm of the pancreas (IPMN) with high-grade dysplasia in the tail of the pancreas. A – Maximum intensity projection image showing cystic lesion with multi-septal structures (arrow). B – T2-weighted turbo spin echo image showing cystic lesion with a mural nodule (arrowhead). C – Diffusion-weighted image showing a high signal lesion (arrow). D – A partially low signal region was detected on the apparent diffusion coefficient (ADC) map, suggestive of restricted diffusion (arrow). ADCoverall mean and ADCentropy were 1.88 (× 10-3 mm2/s) and 4.21, respectively
Figure 6
Box-and-whisker plots comparing quantitative variables obtained from 2D and 3D analyses of intraductal papillary mucinous neoplasm of the pancreas (IPMN) with low- and high-grade dysplasia. Circles indicate outliers. Medians (line through boxes) for apparent diffusion coefficient (ADC) – ADCoverall mean, ADCmean0–10, ADCmean10–25, ADCmean25–50 were lower in IPMNs with high-grade dysplasia than those in IPMNs with low-grade dysplasia. LSR – lesion-to-spinal cord signal intensity ratio
Table 1
Clinical characteristics of patients in our cohort
Table 2
Magnetic resonance imaging features of patients with intraductal papillary mucinous neoplasm of the pancreas (IPMNs) with high- and with low-grade dysplasia with reference to the revised International Consensus Guidelines for the Management of IPMN of the Pancreas, 2017
Table 3
Comparison of the area under the receiver operating characteristic curve between IPMNs with high- and low-grade dysplasia
a ADCmin, ADCmean, ADCoverall mean, ADCmean0-10, ADCmean10-25, ADCmean25-50 (× 10-6 mm2/s). IPMN – intraductal papillary mucinous neoplasm of the pancreas, Ave – average, SD – standard deviation, AUC – area under the curve, CI – confidence interval, ROI – region of interest, LSR – lesion-to-spinal cord signal intensity ratio, ADC – apparent diffusion coefficient, VOI – volume of interest
Table 4
Results of inter-rater reliability assessment
Table 5
Results of multivariate logistic regression analysis and comparison of diagnostic performance of continuous variables in predicting intraductal papillary mucinous neoplasm of the pancreas with high-grade dysplasia
[i] IPMN – intraductal papillary mucinous neoplasm of the pancreas, LSR – lesion-to-spinal cord signal intensity ratio, ADC – apparent diffusion coefficient, PPV – positive predictive value, NPV – negative predictive values. All data for diagnostic performance, except for cut-off values, are expressed as percentages. aADC (× 10-3 mm2/s)
Discussion
The results of this study showed that ADCoverall mean and ADCentropy were significant independent predictors of IPMNs with high-grade dysplasia. Because none of the patients with IPMNs underwent FNA prior to MRI and surgery, all surgeries were performed considering the possibility of malignant potential. Patients with low-grade dysplasia presented more enhancing mural nodules than did patients monitored for suspected IPMNs with low-grade dysplasia in clinical practice. Consequently, enhancing mural nodules showed no significant association with IPMNs with high- and low-grade dysplasia in our univariate analysis. However, only abrupt calibre change in MPD was significantly associated with IPMNs with high-grade dysplasia. Our results indicated that differentiating IPMNs with high-grade dysplasia from those with low-grade dysplasia by analysing MRI features, based on the 2017 revised guidelines, might be difficult [21].
Traditionally, 2D analysis is performed using a value from within a manually set ROI on a single-slice image [10,13]. Theoretically, the most viable malignancy component can be located anywhere within the lesion; thus, 2D analysis is prone to subjective evaluation of lesion heterogeneity. Therefore, the inter-rater reliability for 2D analysis in this study showed fair agreement in all areas except for LSR. ADC value measurements in this study depended on the site chosen for setting the ROIs, which is highly reader-dependent and can cause reproducibility issues. Moreover, intralesional haemorrhage and fibrosis may manifest as blacked-out areas on T2-weighted images, which decreases the ADC value, irrespective of the presence of true restricted diffusion [17]. Conversely, LSR showed significant between-group differences and almost perfect inter-rater agreement. Therefore, the use of LSR to detect suspicious lesions on an ADC map could contribute to improved lesion assessment. Considering the major guidelines, which recommend FNA prior to resection for determining the presence of suspicious or positive cytology [21,23,24], identification of the most suspicious solid component of IPMNs is a prerequisite for selecting the appropriate FNA sampling site. LSR may act as a guide for FNA by identifying the suspicious site for targeted biopsy, enabling endoscopists to determine the sampling site with greater confidence.
We considered that the lower AUCs for ADCmin and ADCmean than for LSR in 2D analysis were related to the overlap in ADC values between IPMNs with high- and low-grade dysplasia, as previously reported by Kang et al. [10]. Therefore, it is difficult to differentiate IPMNs with high-grade dysplasia from those with low-grade dysplasia using ADCmin and ADCmean values obtained by 2D analysis, because both lesion types presumably have histopathologically similar internal structures.
However, VOIs in 3D analysis showed almost perfect inter-rater agreement, which was expected because 3D analysis is considered to be an objective method for highly reproducible evaluation of lesion heterogeneity. Among the 3D analysis parameters, ADCoverall mean and ADCentropy showed significant between-group differences in univariate analysis and substantial inter-rater agreement. Multivariate analysis showed that ADCoverall mean and ADCentropy were independent predictors of IPMNs with high-grade dysplasia. Malignant tumours tend to appear as heterogeneous tissue, resulting in unpredictable intensity characteristics within the tissue. Entropy is a measure of uncertainty and randomness in image values [22]. IPMNs with high-grade dysplasia have a more irregular epithelial growth pattern and a disorganized polarity than those with low-grade dysplasia [3]. In this study, higher ADCentropy was seemingly caused by this histopathological phenomenon. Hoffman et al. recently reported that ADCentropy of 3D whole-lesion histogram metrics was a significant factor for differentiating benign and malignant branch-type IPMNs [20]. However, the AUC for ADCentropy in the present study was not as high as that reported by Hoffman et al. [20], probably because of differences in the applied b-value [25]. In their study, DWI was performed with a high b-value of 500 s/mm2 [20], whereas our high b-value was 800 s/mm2. Moreover, the DWI matrix in their protocol (128-144 × 192) was larger than the one we used for 1.5-T MRI (77 × 128). Therefore, the irregularity of the intra-lesion voxel distribution could be indistinct, and the possible increased overlap of ADCentropy between IPMNs with high-grade dysplasia and IPMNs with low-grade dysplasia might have confounded our results. These factors may have contributed to our lower AUC for ADCentropy. Further studies are needed to investigate the role of ADCentropy based on standardized MRI protocols.
This study had several limitations. First, this was a retrospective, single-centre study with a limited number of patients. Additional studies with large cohorts are needed to further investigate the technique utilized in this study. Second, clinical variables and cyst growth rates > 5 mm/2 years, included as evaluation points in the revised 2017 guidelines, were not evaluated. Third, 3T-MRI has a greater magnetic susceptibility effect than does 1.5T-MRI. This increases the possibility of image distortion. Therefore, if lesions with hemosiderin deposition and the resultant susceptibility effect are present, magnetic susceptibility may affect 3D analysis. Fourth, we used ADC values with b-values of 50 and 800 s/mm2, generated from a mono-exponential model (conventional DWI). Theoretically, this method is influenced by perfusion and diffusion effects. Intravoxel incoherent motion (IVIM)-DWI, which is based on a bi-exponential model with multiple b-value combinations, and which can separate perfusion and diffusion effects, may therefore be more valuable because it can provide more accurate data about signal decay, emphasizing perfusion or diffusion effects [26]. Further studies using IVIM-DWI are needed to investigate its potential as a quantitative biomarker for predicting malignant IPMNs.
Conclusions
The present results suggest that combining the ADCoverall mean and ADCentropy values from 3D analysis and LSR from 2D analysis may assist in predicting IPMNs with high-grade dysplasia. Assessment of ADCoverall mean and ADCentropy from 3D analysis could help to identify patients with IPMNs with high-grade dysplasia using non-enhanced MRI techniques.
